Masking

Masking tells PIVlab which parts of your images to ignore — solid walls, models, reflections or any region without valid tracer particles. Masked pixels produce no vectors and are excluded from all results and statistics.

A mask is a shape (or several shapes) drawn on top of the image. Inside a mask, the velocity is set to “not a number” (NaN), so it never contributes to the correlation, the plots or the averaged data. Masks are stored per frame, but can be copied to as many frames as you like — useful when an object stays still throughout a time-resolved recording.

Opening the masking panel

From the menu bar choose Image settings → Define masks (exclude regions from analysis). The left-hand panel switches to Image masking, shown here.

Load your images first (File → New session) so the image is visible while you draw. If a region is hard to see, use the Image display options buttons — Brighter, Darker and Display average (the mean of all frames) — to make objects and reflections stand out.

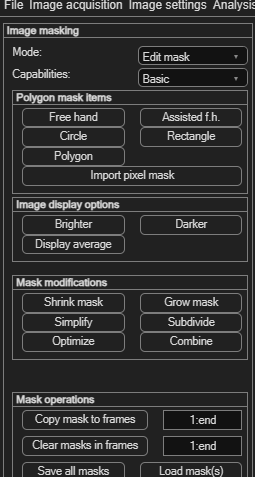

PIVlab Image masking panel in Basic mode — The **Image masking** panel (Basic mode).

Mode and Capabilities

Two dropdowns at the top of the panel control how masking behaves:

Dropdown	Options	What it does
Mode	Edit mask / Preview mask	Edit mask shows every mask as an editable shape you can drag and resize. Preview mask shows the masks only as a coloured overlay, so you can check the result without accidentally moving a shape.
Capabilities	Basic / Expert	Basic gives you the manual drawing tools. Expert adds the automatic mask generators (see Automatic masks).

Drawing a mask

With Mode: Edit mask and Capabilities: Basic, the Polygon mask items panel offers five drawing tools:

Tool	Use it for
Free hand	Tracing an irregular outline by dragging the mouse.
Assisted f.h.	Freehand drawing that snaps to nearby image edges.
Circle	Round objects such as cylinders or bubbles.
Rectangle	Straight-edged regions and image borders.
Polygon	Click corner-by-corner to enclose a straight-sided region.

Worked example — mask the cylinder in the Kármán example. The example images contain a dark cylindrical rod that should be excluded:

Zoom in on the object first: click the magnifier icon, drag a rectangle around it, then click the magnifier again to leave zoom mode. This makes accurate drawing easier.
Click Circle in the Polygon mask items panel.
In the image, press and drag with the left mouse button to draw the circle; release to finish. In PIVlab the left mouse button performs the action and the right mouse button ends it.
Fine-tune the shape by dragging its handles or its centre until it covers the object.

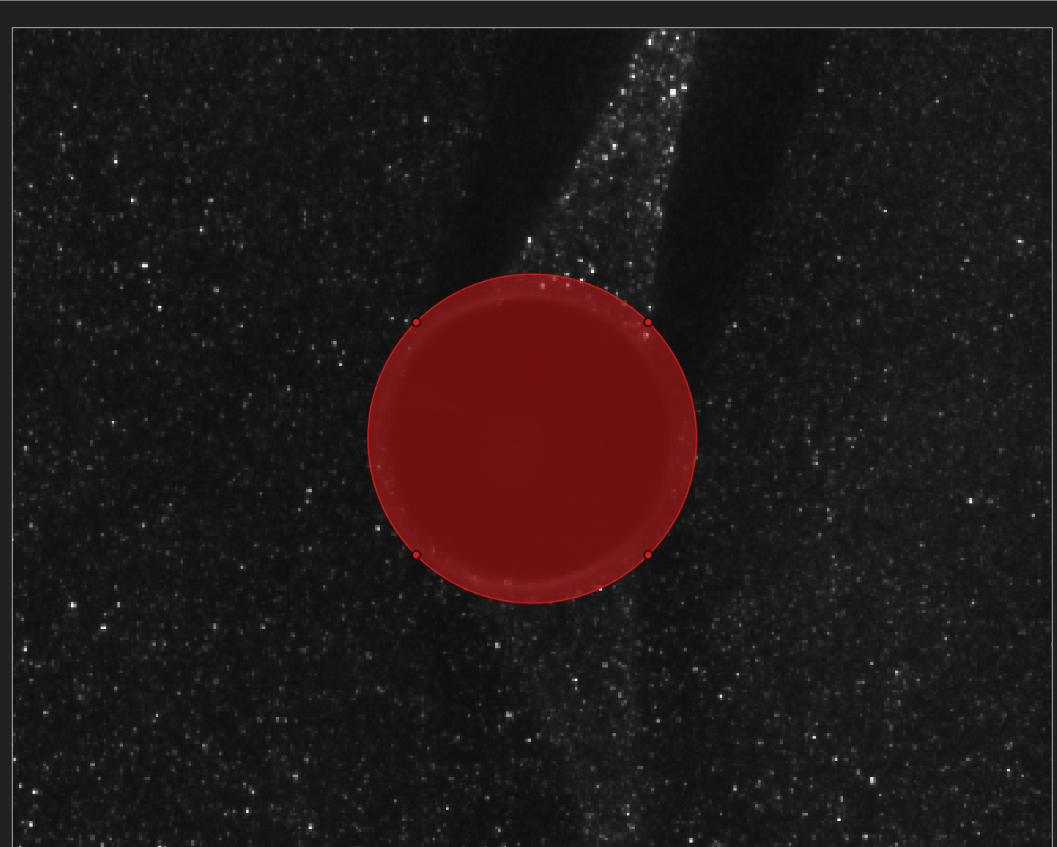

A red circular mask covering the dark cylindrical rod — A circular mask (red, semi-transparent) placed over the rod. The red handles appear in **Edit mask** mode and let you move and resize the shape.

You can draw as many masks as you need in a frame — add a rectangle along an edge and a circle over an object, for example. To remove a single mask, click it and press Delete, or right-click it and choose the delete option.

Tip Already have a mask as a black-and-white image (for example from another program)? Use Import pixel mask to load it from a binary image file instead of drawing by hand.

Applying a mask to several frames

Masks start out on the current frame only. Because the rod does not move during the recording, the same mask should apply to every frame. Use the Mask operations panel:

In the field next to Copy mask to frames, enter the frames to copy to. The default 1:end means “all frames”.
Click Copy mask to frames. The masks from the current frame are copied to every frame you listed.

The frame field accepts MATLAB-style ranges: 1:end (all frames), 1,4,7 (individual frames), 10:15 (a continuous range), or a combination. end always means the last frame.

To remove masks again, enter a range next to Clear masks in frames and click it — only the frames you list are cleared.

Mask operations panel with frame-range fields — The **Mask operations** panel with its frame-range fields.

Overlapping masks — keeping only a region

When masks overlap, PIVlab combines them with an even–odd rule: a pixel is excluded from the analysis when it lies inside an odd number of masks. One mask over an area excludes it; a second mask overlapping the first cancels the overlap and brings that region back into the analysis; a third overlap excludes it again, and so on.

This turns an otherwise awkward task into two steps: to analyse only a small region and exclude everything else, use two overlapping masks —

Draw a large mask (for example a Rectangle) covering the whole image. On its own, this would exclude everything.
Draw a smaller mask of any shape over just the region you want to keep. Where it overlaps the large mask the two cancel, so that region stays un-masked and is the only part analysed.

A full-image mask plus a smaller overlapping mask. The overlap cancels (even count), so only the centre is analysed — everything else is excluded.

Want a union instead of a hole? If you need two overlapping masks to merge into one solid exclusion rather than cancel, select them and click Combine (see below). Combine fuses all overlapping masks in the frame into a single shape, so the overlap is filled in rather than cut out.

Editing, removing and combining masks

The Mask modifications panel adjusts the currently selected mask (click a mask to select it):

Button	Effect
Shrink mask	Contracts the selected mask inward.
Grow mask	Expands the selected mask outward — handy for adding a small safety margin around an object.
Simplify	Reduces the number of points, giving a smoother, lighter outline.
Subdivide	Adds points, allowing finer detail.
Optimize	Re-distributes the outline points for a cleaner shape.
Combine	Merges all overlapping masks in the current frame into one.

Masks too opaque (or too faint) to see the image underneath? The red overlay's see-through amount is a separate setting — Mask transparency [%] in Modify plot appearance.

Automatic masks (Expert mode)

Switch Capabilities to Expert to reveal the Generate masks from PIV images panel. Instead of drawing by hand, PIVlab can detect regions to mask directly from the image content. Pick a generator from the dropdown:

Bright area mask generator — masks over-exposed regions such as glare and reflections (bright pixels above a threshold).
Dark area mask generator — masks dark objects and shadows (pixels below a threshold).
Low contrast area mask generator — masks regions with too few particles to correlate reliably. The Suggest threshold button proposes a sensible starting value.

Each generator has a Threshold plus optional clean-up filters (median smoothing, morphological open/close, dilate/erode, remove small blobs, fill holes). Enable only what you need — for a first attempt, the threshold alone is often enough. Then use the three buttons at the bottom:

Preview current frame — see the detected region without committing, and adjust the threshold until it fits.
Make mask for current frame — turn the preview into a real mask on this frame.
Make mask for all frames — run the detection on every frame in the session.

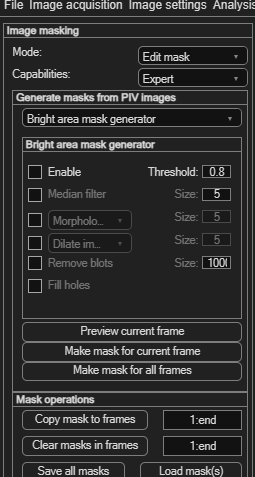

Expert-mode automatic mask generator panel — The **Expert** panel with the bright-area generator selected.

Automatic masks are editable A generated mask becomes an ordinary shape. Switch back to Edit mask mode to fine-tune it, or use Grow mask to add a margin.

Saving, loading and importing masks

Masks are stored with your PIVlab session, but you can also reuse them independently:

Button	Action
Save all masks	Writes every mask in the session to a MATLAB `.mat` file for reuse.
Load mask(s)	Loads masks that were previously saved from PIVlab.
Import pixel mask	Imports a mask from a black-and-white image file (Basic mode).

Remember Masking only affects the analysis when the masked frames are analysed. Set up your masks before running the PIV analysis, or re-run the analysis after changing them.
